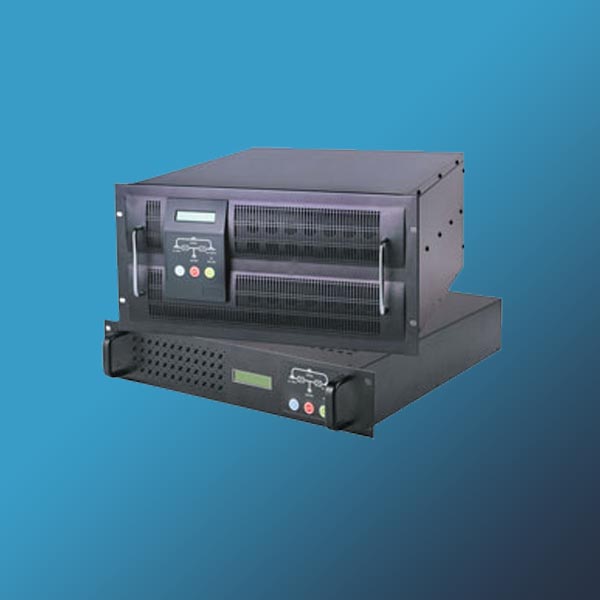

UPS monofazic ONLINE, 1000VA, rack mountable 19", 2U, acumulatori interni

UPS monofazic ONLINE, 1000VA, rack mountable 19inch, 2U, acumulatori interni

 • 19 inch Rack-mount
 • High frequency and dual conversion on-line technology
 • Advanced PFC technology
 • True sine wave output with less than 3% THD
 • Self-diagnosis when UPS startup
 • Advanced battery management(ABM)
 • Cold start feature(DC power on )
 • Automatically charging batteries in UPS off mode
 • Lightning and surge protections(surge energy rating 1050 Joules)
 • Short circuit and overload protections
 • Fan speed automatically changes as load varies
 • Optional external battery pack
 • EMI/RFI noise filter
 • RS232
 • Shutdown & restart schedule

Model G1K19 G2K19 G3K19 G6K19
Capacity (Linear Load) 1KVA
Input Voltage Range Half-Load 120-300VAC, Full-Load 165V-276VAC 176V~290VAC
Frequency Range 45.5Hz~54.5Hz
Output Voltage 220V±3%
Output Frequency 50Hz±0.5Hz
Distortion <3%(Linear Load); <5%(Non-linear Load)
Output Waveform True Sine Wave
Ouerload Capability 110%~130%: Switch to Bypass after 1Min;
130%: Shut down after 1s.
105%~130%: 5Mins;
>130% :1s.
Battery Voltage 36VDC 96VDC 240VDC
Crest Factor 3:1
LCD and LED Utility, Inverter, Bypass, Battery, Load, Battery Mode, Frequency, UPS Fault Indicator
Charge Time Charging Up to 90%, ≤8 Hours
Audible Alarm-Battery Discharge Utility Failure, Beep/4s; Battery Low, Beep/1s
EMC 50091, 9254
UPS Abnormal Continuous Beep and Red LED on
Output Short Circuit Shut down
Ambient Temperature 0°C~40°C
Humidity 10%~90%
Weight(Kg) 9.2/14.5KG 12.8KG 13.6KG 33.17KG(Wooden Box)
Dimension(WxDxH)mm 548x470x177 548x504x177 670x570x295
