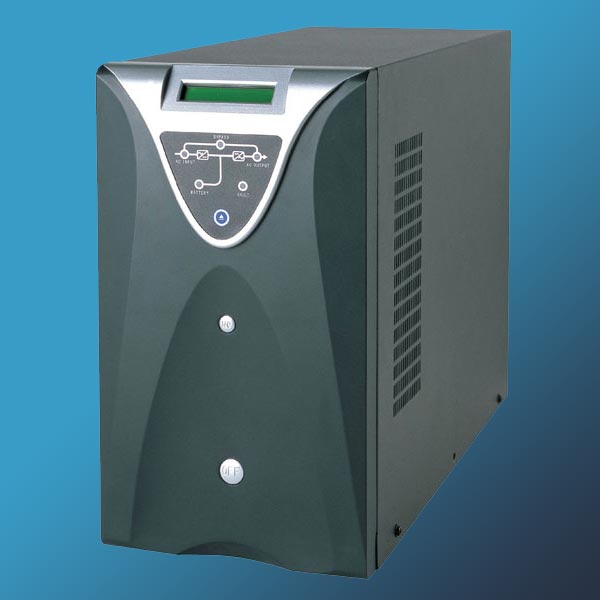

UPS Online HF LCD 2KVA with battery, tower type

UPS Online HF LCD 2KVA with battery, tower type
G2K

Online UPS HF LCD 2KVA UPS with battery; tower type; 230V/50Hz; "Braun Group"; black color
High frequency and dual conversion on-line technology .
Wide input voltage range .
Advanced PFC technology.
True sine wave output with less than 3% THD.
Self-diagnosis at UPS startup .
Advanced battery management(ABM).
Cold start feature(DC power on ).
Automatically charging batteries in UPS off mode.
Lightning and surge protections (surge energy rating 1050 Joules).
Short circuit and overload protections .
Fan speed automatically changes as load varies .
Optional external battery pack .
EMI/RFI noise filter .
RS232 .
Shutdown & restart schedule.

Specifications:

Model

G1K

G2K

G3K

G6K

G10K

Capacity(linear Load)

1KVA
700W

2KVA
1400W

3KVA
2100W

6KVA
4200W

10KVA
7000W

Input Voltage Range

Half Load 120-300VAC

Full Load 165V-276VAC

176V-290VAC

Frequency Range

45.5Hz~54Hz

Output Voltage

220V±3%

Output Frequency

50Hz±0.5Hz

Output Voltage Tolerance

<±5%(100% Load or without Load)

Distortion

<3%(Linear Load);  <5%(Non-linear load)

Output Waveform

True Sine Wave

Overload Capability

110%~130%: Switch to Bypass after

10Mins, 130%: Shut down after 1Min

105%~130%; 10Mins; >130%:1Min.

Battery Voltage

36VDC

96VDC

240VDC

Charge Voltage

40.5±1V

110±1V

274.5±1V

Numbers of Sealed Maintenance-FreeLead-Acid Batteries

12V×3Pcs

12V×8Pcs

12V×20Pcs

Standard Backup Time(Full Load/Half Load)

5/12Mins

7/16Mins

5/13Mins

6/15Mins

8/20Mins

Crest Factor

3:1

Noise(1m)

<45db

<50db

LCD and LED

Utility, Inverter, Bypass, Battery, Load, Battery Mode, Frequency,

UPS Fault Indicator

Transfer Time of AC to DC

Zero

Battery Low Voltage

31±2V

83±2V

200±2V

Charge Time

Charging up to 90%,≤8Hours

Audible Alarm-Battery Discharge

Utility Failure, Beep/4sBattery Low, Beep/1s

EMC

500919254

UPS Abnormal

Continuous Beep and Red LED on

Output Short Circuit

Shutdown

Outlets

2pcs

3pcs

None

Communication Interface

SNMP

Ambient Temperature

0~40

Humidity

10%~90%

Weight(Kg)

9.22/14.5

16.9/33.8

17.5/32

37/84

75/163

Dimension

(W×D×H)mm

140×405×210

195×470×330

240×545×445

340×640×980
